5. Interfaces

5.1. Main Window

Once the HLU Tool has been configured, starting the tool will start the associated GIS application, then the main window will appear as shown in the figure Main Window.

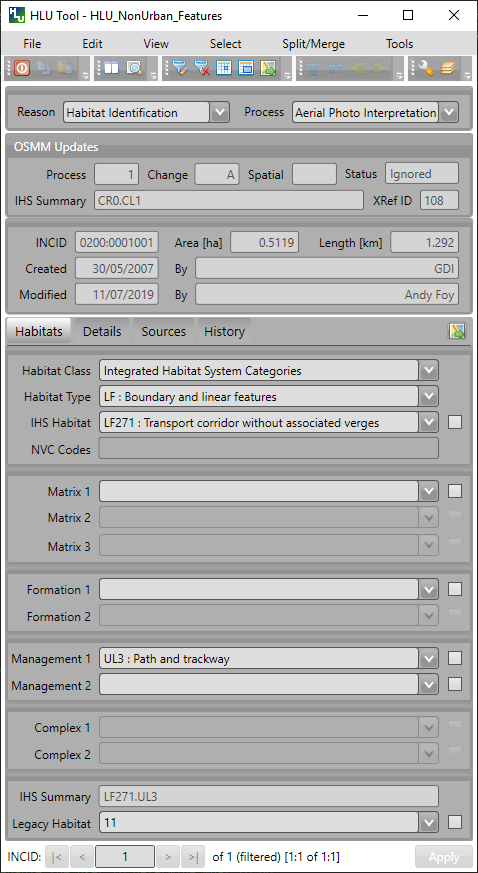

../_images/UserInterfaceMainWindow.png

Main Window

Records can be viewed or updated through the main window of the HLU Tool. Missing or invalid fields are highlighted in red and the relevant tab is also highlighted. The ‘Apply’ button will be active when all required fields have been completed and are valid on all tabs.

The following sections summarise the different sections of the main window.

5.1.1. Title Bar

The main window title bar displays the following information:

  • The tool title, i.e. HLU Tool

  • The active GIS layer, e.g. HLU_NonUrban_Features.

  • Whether the tool is in read-only mode, i.e. [READONLY]

Note

The title bar may also display a number (e.g. [1]) representing which Map Window (MapInfo) or Data Frame (ArcGIS) contains the active GIS layer if there are multiple windows/frames in the associated GIS application.

../_images/UserInterfaceTitleBar.png

Main Window - Title Bar

See also

See ‘Why does the tool title bar show [READ ONLY]?’ in FAQ for more information.

5.1.2. Reason/Process Section

The ‘Reason/Process’ section contains the ‘Reason’ and ‘Process’ fields as shown in the figure Main Window - Reason/Process Section. These fields are required values for all update actions (attribute updates, splits, merges and bulk updates) and are recorded in the History table (and displayed on the History tab) to indicate why the record was updated. These fields are sticky, i.e. the selected reason and process will be retained and used for all subsequent actions in the current session until they are altered by the user.

Note

If the tool is in read-only mode the ‘Reason/Process Section’ will not be displayed.

../_images/UserInterfaceReasonProcessSection.png

Main Window - Reason/Process Section

Reason

The underlying explanation for the change in habitat or land use. It may be as a result of known changes in the habitat (such as habitat restoration), because new information indicates the existing data is wrong or because there has been a change but the underlying the cause is unknown.

Process

The activity being undertaken that has lead to applying this change to the spatial or attribute data of the current INCID. It may relate to a specific project, an ongoing process or an adhoc update.

5.1.3. OSMM Updates Section

The ‘OSMM Updates’ section displays summary information of any proposed or pending OSMM updates for each INCID in the database, including the update process flag, change flag, spatial flag, status and proposed new IHS Summary as shown in the figure Main Window - OSMM Updates Section.

Note

If/when the OSMM Update section appears can be configured in the user options. For details see Interface Options.

../_images/UserInterfaceOSMMUpdateSection.png

Main Window - OSMM Updates Section

For a description of the fields see OSMM Updates Section.

5.1.4. INCID Section

The ‘INCID’ section displays summary information for each INCID in the database, including area, perimeter, date created and date last modified as shown in the figure Main Window - INCID Section.

../_images/UserInterfaceIncidSection.png

Main Window - INCID Section

INCID

The unique reference for the current record.

Area

The total area of all the selected features for the current INCID.

Length

The total perimeter length of all the selected features for the current INCID.

Created/By

The date the current INCID was first created and the name of the user that created it. For most INCIDs this will relate to when the data was first loaded into the framework. For INCIDs that have been created as a result of a logical split this relate to when the split was performed.

Modified/By

The date the current INCID was last modified and the name of the user that modified it. If the INCID has not been modified this will correspond with when the data was first loaded into the framework.

Tip

The displayed INCID value can be copied to the clipboard by selecting the value and then either right-clicking in the field and selecting Copy or pressing Ctrl-C.

Note

If the created or modified users are not configured, the ‘By’ fields will display their Windows login instead of their user name. For details on configuring users see ‘Lookup Tables’ in the HLU Tool Technical Guide at readthedocs.org/projects/hlutool-technicalguide.

5.1.5. Habitats Tab

Click on Habitats to display the Habitats tab as shown in the figure Main Window - History Tab. The Habitats tab displays the Integrated Habitat System (IHS) and legacy habitat details for the current INCID record.

../_images/UserInterfaceHabitatsTab.png

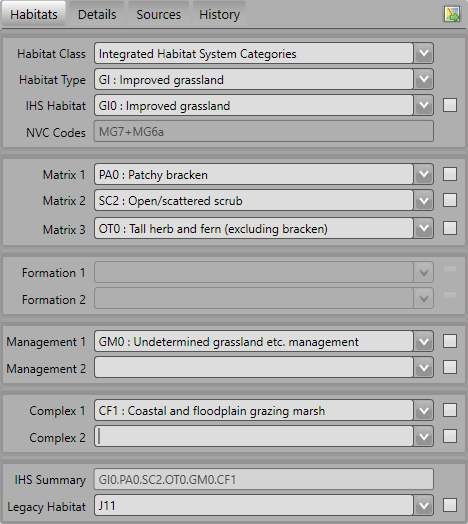

Main Window - Habitats Tab

Class

Drop-down list of habitat classifications used to filter the ‘Type’ drop-down list to a specific habitat class. The contents in the list are based on entries in the lut_habitat_class table. [6]

Note

The entries in this field are only used to assist the user to select the most suitable Habitat value and are not saved to the database. Use Sources if you wish to record the source habitat classification and type in the database (see Sources Tab for more details).

Type

Drop-down list of habitat classification types used to filter the ‘Habitat’ drop-down list to relevant IHS codes. The contents in the list are based on entries in the lut_habitat_type table that relate to the selected Class (above). [6]

Note

The entries in this field are only used to assist the user to select the most suitable Habitat value and are not saved to the database. Use Sources if you wish to record the source habitat classification and type in the database (see Sources Tab for more details).

Habitat

Drop-down list allowing users to select the desired IHS Habitat code. The contents of the list will vary and relate directly to the selected Class and Type (above) and entries in the lut_habitat_type_ihs_habitat table.

NVC Codes

[Read only]. Automatically displays a list of any potential NVC Codes related to the IHS habitat codes selected in the preceding drop-down list.

IHS Matrix / Formation / Management / Complex

Drop-down lists allowing users to refine the habitat definition by adding ‘multiplex’ codes according to the guidelines of IHS.

IHS Summary

[Read only]. Automatically generated concatenation of the IHS habitat and multiplex codes selected from the preceding drop-down lists.

Legacy Habitat

Drop-down list allowing users to view and maintain a legacy habitat definition (if required). The contents of the list are based on entries in the lut_legacy_habitat table.

5.1.6. Details Tab

Click on Details to display the Details tab as shown in the figure Main Window - Details Tab. The Details tab displays any priority and potential priority habitats, general comments, maps and site details.

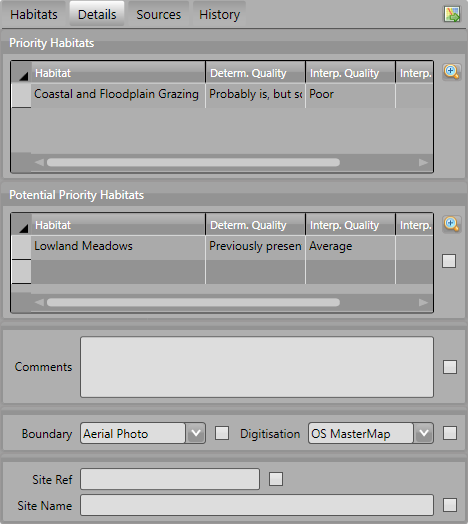

../_images/UserInterfaceDetailsTab.png

Main Window - Details Tab

Priority Habitats

Automatically added based upon the Habitat and multiplex codes selected on the Habitats Tab. For new priority habitats, ‘Determination Quality’ and ‘Interpretation Quality’ must be entered.

Click zoomtable to open the Priority Habitats window.

Potential Priority Habitats

Allows users to define other priority habitats that may also be present in the future given appropriate management or restoration. An INCID may have one or more potential priority habitats even if no priority habitats are present.

Click zoomtable to open the Potential Priority Habitats window.

General Comments

A free-text field which allows users to enter any additional comments up to 254 characters.

Boundary Map

Drop-down lists defining the source data map used to identify the boundary.

Digitisation Map

Drop-down lists defining the map used to digitise the boundary.

Site Ref

A free-text field which allows users to enter the reference code or key of the site containing the INCID features.

Site Name

A free-text field which allows users to enter the name of the site containing the INCID features.

Note

To delete a potential priority habitat click on the grey box to the left of the potential priority habitat to select the row, then press the keyboard Delete key to remove it.

5.1.7. Sources Tab

Click on Sources to display the Sources tab as shown in the figure Main Window - Sources Tab. The Sources tab shows any sources of information that were used to determine the habitat and boundary of all features relating to the current INCID, plus the priorities that were applied to each source. Up to three sources can be defined for each INCID.

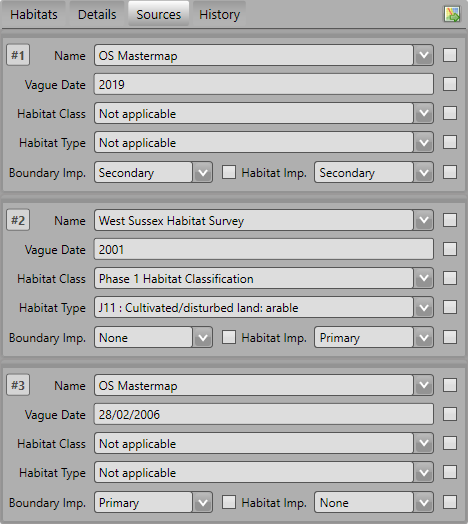

../_images/UserInterfaceSourcesTab.png

Main Window - Sources Tab

Name

Drop-down list containing a list of data sources. For details on adding new sources see ‘Lookup Tables’ in the HLU Tool Technical Guide at readthedocs.org/projects/hlutool-technicalguide.

Note

The following source fields will not be unlocked until a source name has been selected.

Vague Date

Allows users to enter the date of the dataset. This can be either a precise date e.g. 01/04/2010 or a vague date e.g. Spring 2010-Summer 2010, 1980-2010 or ‘Unknown’. For details on configuring vague dates see Dates Options.

Note

If a default date for the selected data source has been defined in the lut_sources table, the ‘Vague Date’ field will be set to the default date. If a default date has not been defined, then the ‘Vague Date’ field must be updated manually. See ‘Lookup Tables’ in the HLU Tool Technical Guide at readthedocs.org/projects/hlutool-technicalguide for details of how to define default source dates.

Habitat Class

Drop-down list defining the habitat classification used for this data source. If no habitat classification is used, select ‘Not Applicable’.

Habitat Type

Drop-down list defining the type of habitat. This list is filtered based upon the habitat class.

Boundary Imp.

Drop-down list defining the importance of the source data in determining the INCID boundary (in relation to the other sources). Select ‘None’ if the data source played no part in determining the boundary.

Habitat Imp.

Drop-down list defining the importance of the source data in determining the INCID habitat type (in relation to the other sources). Select ‘None’ if the data source played no part in determining the habitat type.

Important

For Boundary Importance and Habitat Importance there can only be one source set as ‘Primary’, ‘Secondary’ or ‘Confirmatory’ for each field. The importances must also be applied in order, i.e.:

  • If there is only one source - it must be set to ‘Primary’ (or ‘None’ if it played no part in determining the habitat or boundary).

  • If there are two sources - one must be set to ‘Primary’ and one to ‘Secondary’ (or ‘None’ if either played no part in determining the habitat or boundary).

  • If there are three sources - one must be set to ‘Primary’, one to ‘Secondary’ and one to ‘Confirmatory’ (or ‘None’ if any played no part in determining the habitat or boundary).

5.1.8. History Tab

Click on History to display the History tab as shown in the figure Main Window - History Tab. The History tab displays a list of previous modifications made to the current INCID and the associated TOIDs.

../_images/UserInterfaceHistoryTab.png

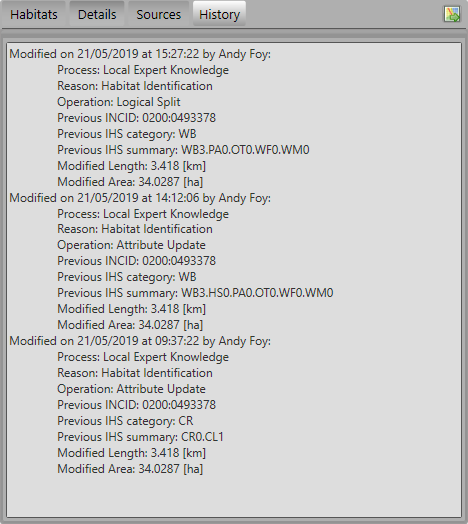

Main Window - History Tab

Each entry details what modifications were made, when and by whom. Entries are shown in descending date and time order with the most recent changes at the top. The maximum number of entries to appear in the history tab can be configured in the Options (see GIS/Export Options for more details).

5.1.9. INCID Status Section

The ‘INCID Status’ section contains record selectors to enable users to move back and forward between INCID records and displays the record position and the total number of records in the active filter (or the total number of INCID records in the database if there is no active filter). It also displays the number of TOIDs and TOID fragments selected in GIS for the current INCID when the filter was applied as well as the total number of TOIDs and TOID fragments related to the current INCID in the database.

../_images/UserInterfaceIncidStatusSection.png

Main Window - INCID Status Section

For example, figure Main Window - INCID Status Section indicates that the interface is currently displaying record 4 of the 6 records in the active filter, and also shows that 2 TOIDs and 2 fragments from those TOIDs were selected in the active GIS layer out of a total of 3 TOIDs with 3 fragments associated with the current INCID. Hence, only a subset of the TOIDs or fragments associated with the current INCID are selected in GIS.

Note

All INCIDs in the active filter will always be retrieved in INCID order, so moving backwards or forwards through the records using the record selector will always select the previous or next available INCID from those in the filter.

This section also contains the Apply button which is used to apply any attribute changes to the current INCID. See Attribute Updates for more details.

Note

The Apply button will only be displayed if:

  • The user is listed in the lut_user table.

  • The active GIS layer is in edit mode.

  • The user has made one or more changes to the current INCID.

  • There are no fields in error.

5.1.10. Warning and Error Messages

Any fields that either have a warning associated with them or are in error will be highlighted

Warnings

Warnings will be highlighted with an orange border and exclamation mark in a triangle (as seen in the figure Main Window - Warning and Error Messages). Hovering over a field with a warning will display a tooltip message indicating the nature of the warning.

Errors

Errors will be highlighted with a red border and exclamation mark in a circle (as seen in the figure Main Window - Warning and Error Messages). The appropriate tab header for any invalid fields will also be highlighted to help users locate any errors in fields currently hidden on an inactive tab. Hovering over a field with an error will display a tooltip message indicating the nature of the error.

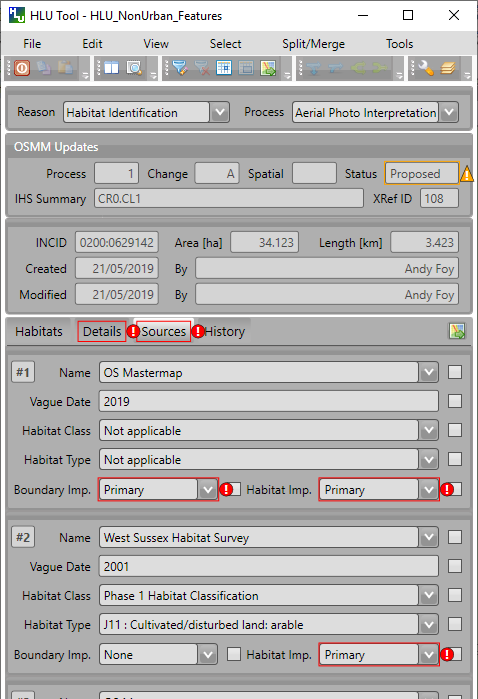

../_images/UserInterfaceErrorMessages.png

Main Window - Warning and Error Messages

Note

Whilst any fields are in error the Apply button will not appear.

5.2. Priority Habitats Window

Allows users to edit any priority habitats as shown in the figure Priority Habitats Window.

Click zoomtable adjacent to the Priority Habitats table on the Details tab to open the window.

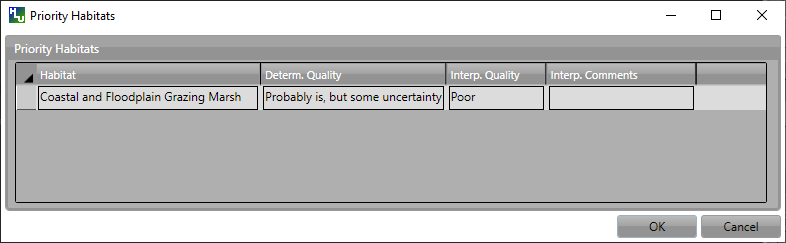

../_images/UserInterfacePriorityHabitatsWindow.png

Priority Habitats Window

5.3. Potential Priority Habitats Window

Allows users to add, edit or delete any potential priority habitats as shown in the figure Potential Priority Habitats Window.

Click zoomtable adjacent to the Potential Priority Habitats table on the Details tab to open the window.

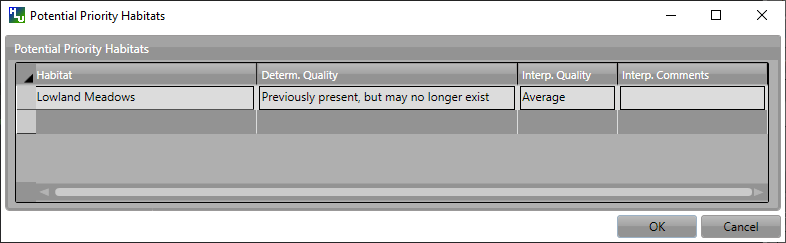

../_images/UserInterfacePotentialPriorityHabitatsWindow.png

Potential Priority Habitats Window

5.4. Bulk Update Window

The main window will transform into the bulk update window when the bulk update mode is started. The window appears the same as the main window except for the Bulk Update section and the INCID Status section as shown in the figure Bulk Update Window. The History tab will also be disabled.

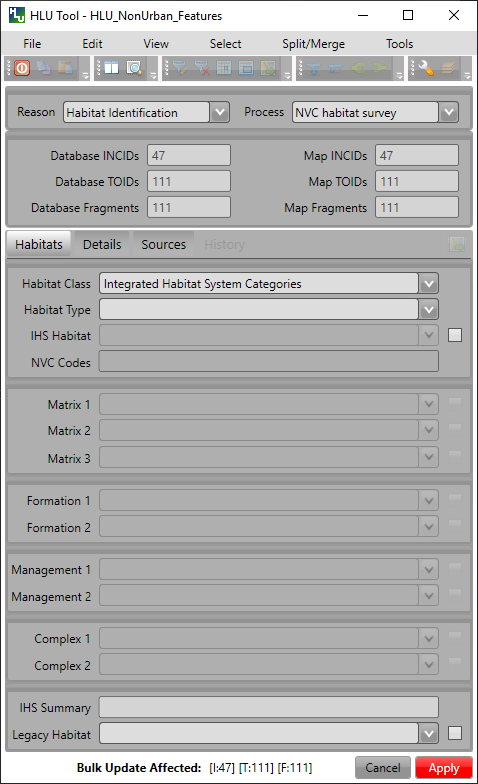

../_images/UserInterfaceBulkUpdate1.png

Bulk Update Window

Note

  • Bulk update mode can only be started when edit mode is active and once a filter is applied to the INCID records.

  • This function is only available to configured users who have been given bulk update permissions. For details on configuring users see ‘Lookup Tables’ in the HLU Tool Technical Guide at readthedocs.org/projects/hlutool-technicalguide.

5.4.1. INCID Section

The ‘INCID’ section displays summary information for all of the INCIDs and GIS features currently filtered (as shown in the figure Bulk Update Window - INCID Section). The Database counts refer to the total number of INCIDs, TOIDs and Fragments found in the database relating to the current filter. The Map counts refer to the total number of INCIDs, TOIDs and Fragments currently selected in the active GIS layer.

../_images/UserInterfaceBulkUpdateSection.png

Bulk Update Window - INCID Section

Database INCIDs

Displays the number of INCIDs in the database for the active filter that the bulk update will be applied to.

Map INCIDs

Displays the number of INCIDs for features selected in the active GIS layer that the bulk update will be applied to.

Database TOIDs

Displays the number of TOIDs in the database for the active filter that the bulk update will be applied to.

Map TOIDs

Displays the number of TOIDs for features selected in the active GIS layer that the bulk update will be applied to.

Database Fragments

Displays the number of fragments in the database for the active filter.

Map Fragments

Displays the number of fragments/features selected in the active GIS layer that the bulk update will be applied to.

Note

Any discrepancies between the Database and Map counts will be highlighted with warning messages. This indicates that not all INCIDs, TOIDs or Fragments in the database are held within the active GIS layer.

5.4.2. INCID Status Section

The Bulk Update ‘INCID Status’ section shows the total number of INCIDs, TOIDs and Fragments in the active filter.

../_images/UserInterfaceBulkUpdateStatusSection.png

Bulk Update Window - INCID Status Section

For example, figure Bulk Update Window - INCID Section indicates that the active filter currently contains 47 INCIDs, 58 TOIDs and 58 fragments from those TOIDs.

5.4.3. Bulk Update Confirmation Window

Before a bulk update is applied a confirmation window will appear with a number of options relating to the update as shown in the figure Bulk Update Confirmation Window.

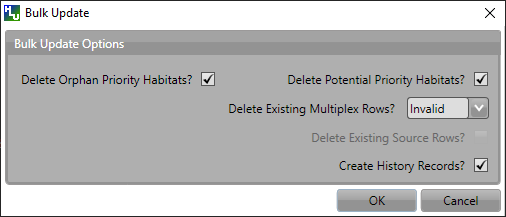

../_images/UserInterfaceBulkUpdateConfirmation1.png

Bulk Update Confirmation Window

Delete Orphan Priority Habitats

Whether existing priority habitats (those automatically associated with the current IHS Habitat) that are orphaned (i.e. not associated with the new IHS Habitat) should be deleted following a change to the IHS Habitat during a bulk update. If unchecked, any existing priority habitats are converted to potential priority habitats with the determination quality changed to ‘Previous present, by may no longer exist’.

Delete Potential Priority Habitats

Whether existing potential priority habitats (those added manually by a user) should be deleted following during a bulk update. If unchecked, any existing potential priority habitats will be retained.

Delete Existing Multiplex Rows

Whether existing multiplex (matrix, formation, management and complex) codes should be deleted following a change to the IHS Habitat during a bulk update. The available options are:

  • All - Deletes all existing multiplex codes.

  • Invalid - Deletes only existing multiplex codes that are not valid for the new IHS Habitat.

  • None - All existing multiplex codes will be retained, and any not be compatible with the new IHS Habitat will appear as errors when displayed in the main interface.

Caution

Use option All with caution. A warning message will appear when this option is selected.

Note

This option will only be displayed if a new IHS Habitat has been entered for the bulk update.

Delete Existing Source Rows

[Read only] Whether existing source rows will be deleted when one or more new sources are provided for a bulk update.

Note

This option cannot be controlled by the user - it is automatically determined based on whether one or more new sources are provided or not.

Create History Records

Whether history records will be created when a bulk update is applied.

Note

The default values for all of the above fields (except for Delete Existing Source Rows) can be set in the options (see Bulk Update Options for more details).

5.5. Review OSMM Updates Window

The main window will transform into the OSMM review updates window when the review OSMM updates mode is started (see Review OSMM Updates for more details). The window appears the same as the main window except for the OSMM Updates section and the INCID Status section as shown in the figure Review OSMM Updates Window.

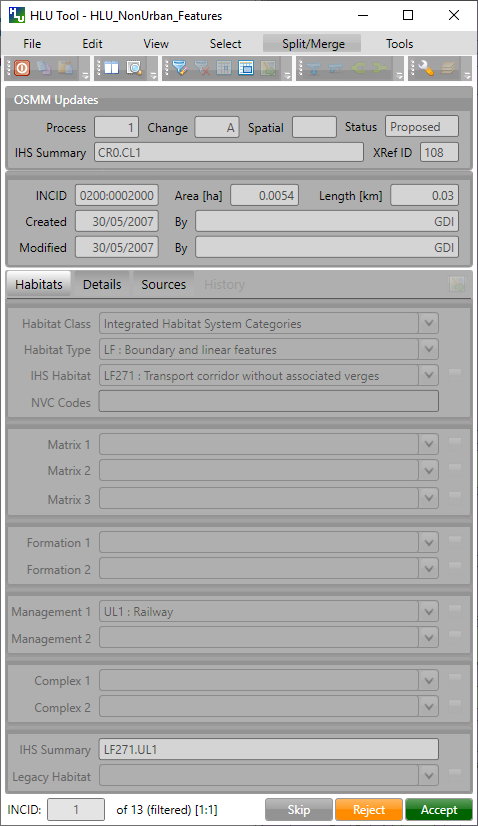

../_images/UserInterfaceReviewOSMMUpdates1.png

Review OSMM Updates Window

Note

  • OSMM review update mode can only be started when there are proposed OSMM update records in the database.

  • This function is only available to configured users who have been given bulk update permissions. For details on configuring users see ‘Lookup Tables’ in the HLU Tool Technical Guide at readthedocs.org/projects/hlutool-technicalguide.

5.5.1. OSMM Updates Section

The ‘OSMM Updates’ section displays summary details of any proposed or pending OSMM updates for each INCID in the database as shown in the figure Review OSMM Updates Window - OSMM Updates Section.

../_images/UserInterfaceOSMMUpdateSection.png

Review OSMM Updates Window - OSMM Updates Section

Process Flag

Which step in the external OSMM Update process the proposed update was determined. Values represent the type of change in the IHS habitat class from the original incid feature to the new incid feature, and the number of sources assigned to the original incid feature, as follows:

  • 1 = Built to Built (only 1 source)

  • 2 = Built to Built (two or more sources)

  • 3 = Built to Natural (any number of sources)

  • 4 = Natural to Built (only 1 source)

  • 5 = Natural to Built (two or more sources)

  • 6 = Natural to Natural (only 1 source)

  • 7 = Natural to Natural (two or more sources)

  • 8 = Any to Unknown (any number of sources)

  • 9 = Unknown to any (except unknown) (any number of sources)

Change Flag

Assists with prioritising proposed updates by summarising the type of habitat change. Values indicate whether the proposed habitat category (e.g. ‘WB’) is the same as the original habitat category and whether it is a higher or lower level in the habitat hierarchy, as follows:

  • <blank> = Same category and habitat (e.g. GN1 to GN1)

  • A = Same category but proposed habitat is higher level (e.g. WB3 to WB36)

  • B = Same category but proposed habitat is different and same or lower level (e.g. LF271 to LF272, LF271 to LF27)

  • C = Proposed habitat is different and higher level (e.g. WB3 to EM41)

  • D = Proposed habitat is different and same level (e.g. WB3 to EM4)

  • E = Proposed habitat is different and lower level (e.g. WB36 to EM4)

Spatial Flag

Indicates whether part of the new feature has been changed compared to the original framework. An ‘X’ denotes when a feature (once the external OSMM Update process has been completed) overlaps two or more features in the original framework, and so a portion of the new feature may now be assigned to a different INCID than it was originally.

Status

Indicates the current status of the proposed OSMM Update, as follows:

  • Proposed = the OSMM update has not be accepted or rejected by a user yet

  • Pending = the OSMM update has been accepted and is awaiting to be applied (see see Bulk OSMM Update Window for more details).

  • Applied = the OSMM update has been accepted and applied

  • Ignored = the INCID was manually updated when an OSMM update was still proposed or pending and hence the OSMM update was ignored

  • Rejected

IHS Summary

Concatenation of the proposed IHS habitat and multiplex codes based on the new OSMM attributes.

5.5.2. INCID Status Section

The Review OSMM Updates ‘INCID Status’ section shows the total number of INCIDs in the active filter, and the number of TOIDs and fragments for the current INCID.

../_images/UserInterfaceOSMMUpdateStatusSection.png

Review OSMM Updates Window - INCID Status Section

For example, figure Review OSMM Updates Window - INCID Status Section indicates that the active filter currently contains 13 INCIDs and the current INCID consists of 1 TOID with 1 fragment.

Holding down the Ctrl key changes the Reject and Accept buttons to Reject All and Accept All thereby allowing the user to Reject or Accept all remaining INCIDs in the active filter.

../_images/UserInterfaceOSMMUpdateStatusSection2.png

Review OSMM Updates Window - INCID Status Section 2

For example, figure Review OSMM Updates Window - INCID Status Section 2 shows the ‘INCID Status’ section when the Ctrl key is pressed.

5.5.3. OSMM Updates Filter

When the review OSMM updates mode is first started, the OSMM Updates Filter window will appear as shown in the figure Review OSMM Updates Filter Window. This allows the user to filter which subset of proposed OSMM Updates to review.

../_images/UserInterfaceOSMMUpdatesFilter1.png

Review OSMM Updates Filter Window

OSMM Updates Summary

Displays a tabular summary of all the OSMM Updates in the database. Each row is a unique combination of the Process Flag, Change Flag, Spatial Flag and shows the number of records for each of the possible Status values (Rejected, Ignored, Proposed, Pending and Applied) and the total records for all statuses. Only combinations that exist in the database (rather than all possible combinations) will appear in the table.

Tip

Selecting one of the rows in the table will set the Process, Change and Spatial values in the Filter by OSMM Updates section to those of the selected row. However, the Status field will not be changed and must be selected manually.

Process

Allows the user to select a specific value, to select only proposed updates with a given Process flag, or select <all> to select proposed updates with any Process flag.

Change

Allows the user to select a specific value, to select only proposed updates with a given Change flag, or select <all> to select proposed updates with any Change flag.

Spatial

Allows the user to select a specific value, to select only proposed updates with a given Spatial flag, or select <all> to select proposed updates with any Spatial flag.

Status

Allows the user to select a specific value to select only proposed updates with a given pending status (Rejected, Ignored or Proposed).

Note

Typically only updates with a pending status of ‘Proposed’ would be selected, but the option to select updates with a pending status of ‘Rejected’ or ‘Ignored’ is available to enabled earlier actions to be reviewed or undone. However, it is not possible to select updates that have already been accepted or applied (i.e. have a status of ‘Pending’ or ‘Applied’).

OK

Click Ok to apply the selected filter to the INCID records in the main interface and close the OSMM Updates Filter window.

Reset

Click Reset to clear all of the Process, Change, Spatial and Status fields.

Cancel

Click Cancel to close the OSMM Updates Filter window without applying a new filter.

Note

The user can change the filter at any time when in Review OSMM Updates mode by clicking:

  • filterbyattr or Select… –> Filter by Attributes… to open the OSMM Updates Filter window.

  • Select… –> Filter by Attributes - Advanced … to open the Advanced Query Builder window.

Tip

Clicking on any of the column headings will sort the table by that column in ascending order. Clicking on the same column again will sort it in descending order.

5.5.4. OSMM Updates Filter - Advanced

As an alternative to the OSMM Updates Filter window that first appears when the review OSMM updates mode is first started, the advanced filter window can be used. This provides the user with greater control to filter which subset of proposed OSMM Updates to review.

To open the advanced filter window:

  • Close the standard OSMM Updates Filter window

  • Click Select… –> Filter by Attributes - Advanced… to open the Advanced Query Builder window.

5.6. Bulk OSMM Update Window

The main window will transform into the bulk OSMM update window when the bulk OSMM update mode is started. The window appears the same as the main window except for the Bulk Update section and the INCID Status section as shown in the figure Bulk OSMM Update Window. The Habitats tab and History tab will also be disabled.

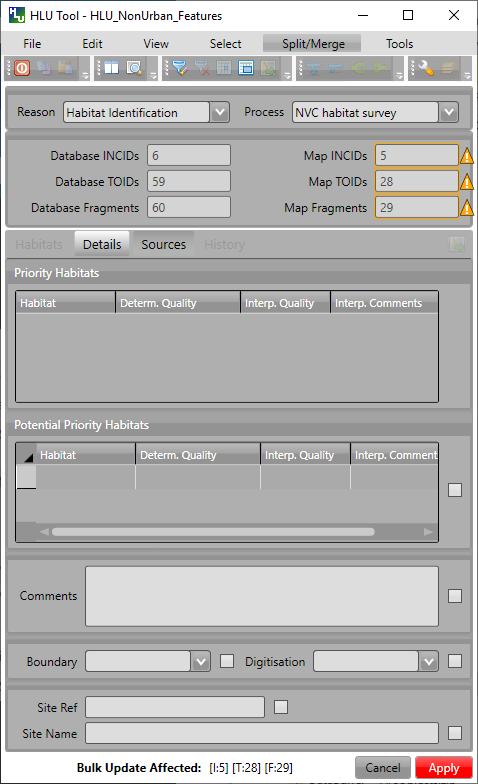

../_images/UserInterfaceBulkOSMMUpdate1.png

Bulk OSMM Update Window

Note

  • Bulk OSMM update mode can only be started when edit mode is active.

  • This function is only available to configured users who have been given bulk update permissions. For details on configuring users see ‘Lookup Tables’ in the HLU Tool Technical Guide at readthedocs.org/projects/hlutool-technicalguide.

5.6.1. INCID Section

The ‘INCID’ section displays summary information for all of the INCIDs and GIS features currently filtered (see Bulk Update Window for details).

5.6.2. INCID Status Section

The Bulk Update ‘INCID Status’ section shows the total number of INCIDs, TOIDs and Fragments in the active filter (see Bulk Update Window for details).

5.6.3. OSMM Updates Filter

When the bulk OSMM updates mode is first started, the OSMM Updates Filter window will appear (see OSMM Updates Filter for details). This allows the user to filter which subset of pending OSMM Updates the bulk update will apply to.

5.6.4. Bulk OSMM Update Confirmation Window

Before a bulk OSMM update is applied a confirmation window will appear with a number of options relating to the update as shown in the figure Bulk OSMM Update Confirmation Window.

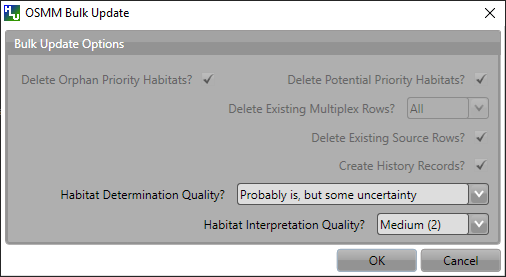

../_images/UserInterfaceBulkOSMMUpdateConfirmation.png

Bulk OSMM Update Confirmation Window

Habitat Determination Quality

The accuracy with which any priority habitats have been determined (e.g. ‘Definitely is the priority habitat’). This will apply to all priority habitats created as a result of the OSMM updates.

Habitat Interpretation Quality

An assessment of the quality and age of the habitat source, and the relationship between the habitat type and the priority habitat type (e.g. ‘Low (5)’). This will apply to all priority habitats created as a result of the OSMM updates.

Note

The default values for these fields can be set in the options (see Bulk Update Options for more details).

Note

Some of the options cannot be controlled by the user - they are automatically set for bulk OSMM updates.

5.7. Options Window

Allows users to alter the HLU Tool configuration features specific to their user id. There are seven tabs/categories of options.

Click options or Tools… –> Options to open the Options window.

5.7.1. Database Options

The following options relate to how the HLU Tool interacts with the underlying database.

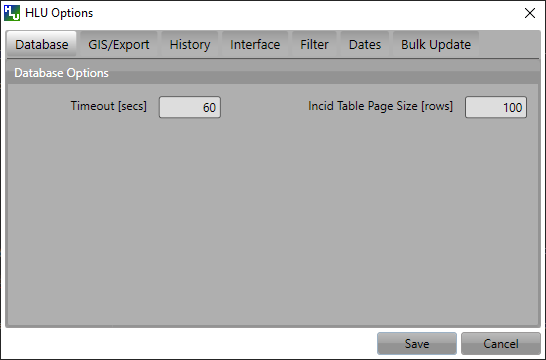

../_images/OptionsWindowDatabase.png

Options Window - Database

Timeout

Sets the amount of time the tool will wait (in seconds) for the database to respond. The default value is 15. This value should be increased if an error occurs such as ‘The connection to the database timed out’ or if the network and/or database connection is known to be slow.

Incid Table Page Size

Sets how many rows are retrieved from the database and stored in memory. The default value is 100. Increasing this value can improve performance when browsing records, however this will increase the amount of RAM required by the application and significant increases in the page size value could cause the tool to stop responding.

5.7.2. GIS/Export Options

The following options relate to the GIS application associated with the HLU Tool and the export function.

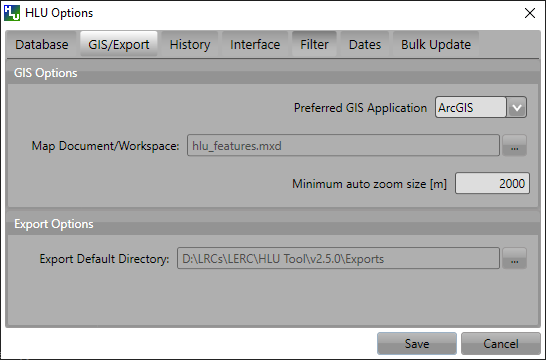

../_images/OptionsWindowGISExport.png

Options Window - GIS/Export

Preferred GIS Application

Allows users to select whether the tool should use ArcGIS or MapInfo if both applications are installed on their computer.

Note

The tool must be closed and restarted for this change to take effect.

Map Document/Workspace

Sets the default map document or workspace opened by the HLU Tool. As this field cannot be edited directly, users must click on the … button and browse to the new map document or workspace.

Note

If the ‘Preferred GIS’ option is altered, this field must also be updated.

Export Default Directory

Enables MapInfo users to set a default destination folder path for new GIS layers when performing an export (see Export Window for more details). A different path to the default can also be selected during the export process.

Note

This option is only available if MapInfo is selected as the ‘Preferred GIS Application’. The default export folder path for ArcGIS users is controlled by ArcGIS and cannot be altered by the HLU Tool.

5.7.3. History Options

The following options relate to how history records are displayed in the HLU Tool main interface.

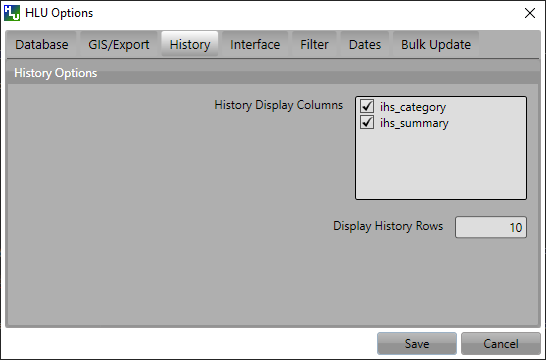

../_images/OptionsWindowHistory.png

Options Window - History

History Display Columns

Allows users to select which additional columns from the GIS layer are displayed in the History tab for each update. If the checkbox for a column is ticked, the column will be displayed.

Display History Rows

Sets the number of entries displayed in the ‘History’ tab of the main window. For more details on the ‘History’ tab see History Tab.

5.7.4. Interface Options

The following options relate to how the HLU Tool main interface appears and what happens when attribute updates are applied.

../_images/OptionsWindowInterface.png

Options Window - Interface

Preferred Habitat Class

Allows the user to choose which Habitat Class in the INCID tab (see Habitats Tab for more details) is automatically selected each time the HLU Tool is started.

Action to Take When Updating Subset

Allows users to select what action to take if they attempt to apply attribute changes to only a subset of features for an INCID (see Attribute Updates for more details). The available actions are:

  • Prompt - Always prompt the user when attempting to update a subset of INCID features (see Attribute Updates for an example of the prompt dialog).

  • Split - Always perform a logical split before applying the attribute updates.

  • All - Always apply the attribute update to all features belonging to the INCID regardless of which features of the INCID are currently selected.

Show NVC Codes

Allows the user to choose if a list of any potential NVC Codes related to the selected IHS habitat code will be shown.

Show Group Headers

Allows the user to choose if section headers in the main user interface will be shown or hidden (to reduce the height of the interface).

Notify After Completing Split/Merge?

Enable users to specify if a pop-up message should be displayed following the completion of any of the split or merge operations.

Show OSMM Update Attributes

Allows the user to choose when Ordnance Survey MasterMap (OSMM) updates should be shown (see OSMM Updates Section for more details). The available options are:

  • Never - Never show the OSMM Updates section.

  • When Outstanding - Only show the OSMM Updates section when the update is outstanding (the status is ‘Proposed’ or ‘Pending’).

  • Always - Always show the OSMM Updates section.

Reset Pending OSMM Update Status On Manual Update

Allows the user to choose if the status of OSMM Updates for the current INCID should be reset to ‘Ignored’ when an attribute update is applied.

5.7.5. Filter Options

The following options relate to the preferred query builder used to filter INCID records.

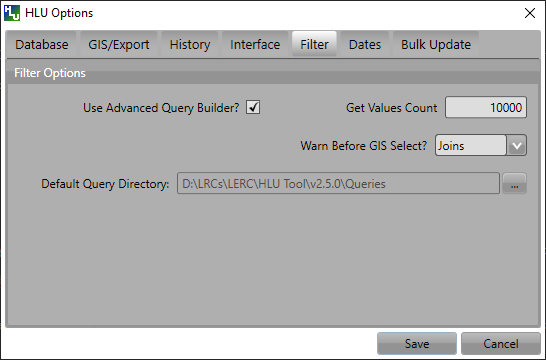

../_images/OptionsWindowFilter.png

Options Window - Filter

Use Advanced Query Builder

Allows the user to choose their preferred SQL query builder interface (see Query Builder Window and Advanced Query Builder Window for details).

Get Values Count

Allows the user to select the maximum number of unique field values that will be retrieved each time the Get Values button is pressed when using the ‘Advanced Query Builder’ (see Advanced Query Builder Window for details). The maximum number of rows that can be retrieved at any time cannot exceed 100,000. This number should be reduced if performance issues are experienced when the Get Values button is pressed or when the drop-down list is used on the ‘Advanced Query Builder’.

Note

This option is only available if ‘Use Advanced Query Builder’ is selected.

Warn Before GIS Select

Allows users to determine if/when a pop-up warning/information message should be displayed prior to selecting features in GIS, e.g. when applying a filter (see Filter by Attributes for details) or when selecting the features for all INCIDs in the active filter. The available options are:

  • Always - Warn/inform the user before every GIS select, regardless of the expected number of features to be select or the method of selection to be used.

  • Joins - Only warn/inform the user when a temporary join will be performed in GIS in order to select the features.

  • Never - Do not warn/inform the user regardless of the expected number of features to be select or the method of selection to be used.

Default Query Directory

Enables users to set a default folder path that will be used when saving or loading queries with the ‘Advanced Query Builder’ (see Advanced Query Builder Window for details). A different path to the default can also be selected during the save and load process.

Note

This option is only available if ‘Use Advanced Query Builder’ is selected.

5.7.6. Dates Options

The following options relate to the formatting of vague dates used in the sources section of the main interface.

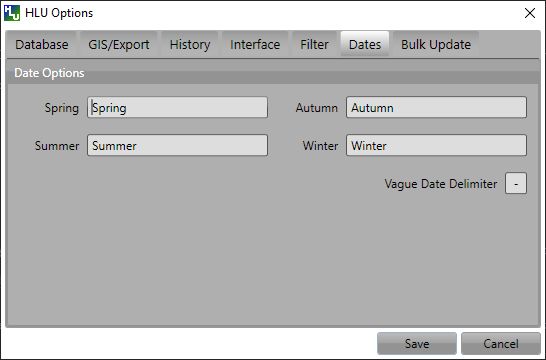

../_images/OptionsWindowDates.png

Options Window - Dates

Seasons

These fields allow users to define how seasonal dates, such as ‘Spring 2009’ or ‘Winter 2010’, are entered so that they can be converted to dates in the HLU database.

Vague Date Delimiter

This field allow users to define how date ranges, such as ‘Spring 2010-Autumn 2010’ or ‘1989-2010’, are entered so that they can be converted to dates in the HLU database.

Note

The default value for the ‘Vague Date Delimiter’ is a hyphen ( - ). This can be altered to any character, however, it must not be the same delimiter used by the computer to enter precise dates, such as 01/04/2010. The default delimiter used by Windows for English-format dates is a forward slash ( / ).

5.7.7. Bulk Update Options

The following options relate to the default values to use when applying bulk updates and OSMM bulk updates (see Bulk Updates for details). All options can be amended during the bulk update process.

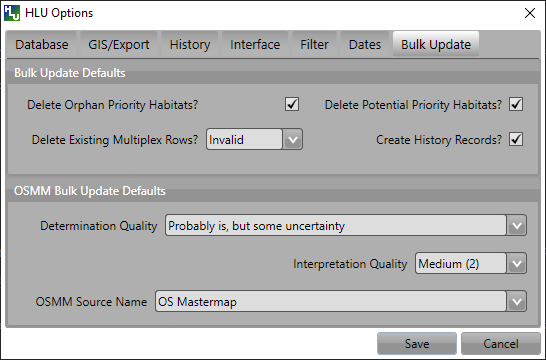

../_images/OptionsWindowBulkUpdate.png

Options Window - Bulk Update

Delete Orphan Priority Habitats

The default option for whether existing priority habitats (those automatically associated with the current IHS Habitat) that are orphaned (i.e. not associated with the new IHS Habitat) should be deleted following a change to the IHS Habitat during a bulk update. If unchecked, any existing priority habitats are converted to potential priority habitats with the determination quality changed to ‘Previous present, by may no longer exist’.

Delete Potential Priority Habitats

The default option for whether existing potential priority habitats (those added manually by a user) should be deleted following during a bulk update. If unchecked, any existing potential priority habitats will be retained.

Delete Existing Multiplex Rows

The default option for whether existing multiplex (matrix, formation, management and complex) codes should be deleted following a change to the IHS Habitat during a bulk update. If unchecked, any existing multiplex codes will be retained, and any not be compatible with the new IHS Habitat will appear as errors when displayed in the main interface.

Create History Records

The default option for whether history records will be created when a bulk update is applied.

Determination Quality

The default option for which determination quality to apply to any new priority habitats (those automatically associated with the new IHS Habitat) following a change to the IHS Habitat during an OSMM bulk update.

Interpretation Quality

The default option for which interpretation quality to apply to any new priority habitats (those automatically associated with the new IHS Habitat) following a change to the IHS Habitat during an OSMM bulk update.

OSMM Source Name

The default option for which Ordnance Survey MasterMap source name to use when automatically adding a new source record during an OSMM bulk update.

5.8. Filter Windows

Allows users to filter the INCID records that appear in the user interface, and correspondingly which features are selected in the active GIS layer. The filter is performed by building a SQL query that will select one or more INCIDs based on a chosen set of criteria, or by entering a single INCID value. There are two main interfaces available:

  • HLU Query Builder - the original interface supplied with the HLU Tool.

  • HLU Advanced Query Builder - a new interface that provides more user-friendly and flexible functionality.

Users can choose their preferred interface for building a SQL query in the user Options (see Filter Options for details).

5.8.1. Query Builder Window

Allows users to filter the database records using the query builder shown in the figure Query Builder Window.

Click filterbyattr or Select… –> Filter by Attributes… to open the window.

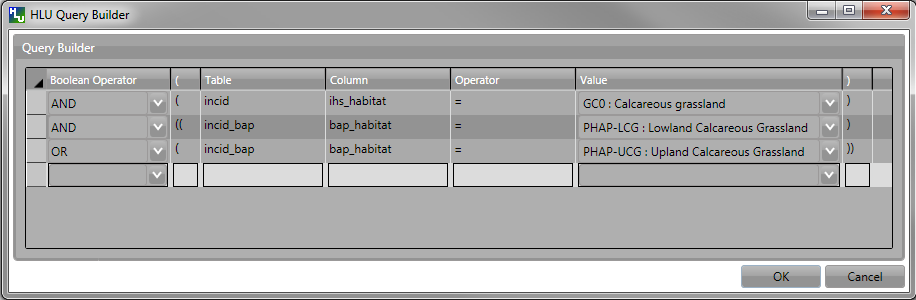

../_images/QueryBuilder1.png

Query Builder Window

Boolean Operator

Allows users to perform logical selections using:

  • ‘AND’

  • ‘AND NOT’

  • ‘OR’

  • ‘OR NOT’.

Note

The value of the ‘Boolean Operator’ field on the first row is not used.

‘(’ and ‘)’

Allow users to add additional brackets to nest criteria and boolean operators to meet specific selection requirements

For example, the query in the figure Query Builder Window will select records where:

  • ihs_habitat equals ‘GC0’ AND bap_habitat equals EITHER ‘PHAP-LCG’ OR ‘PHAP-UCG’

In other words records must match the specified ihs_habitat value and must also match either of the specified bap_habitat values.

Note

Without the additional set of brackets around the last two lines in the above example the query would select records that either:

  • match the ihs_habitat specified value AND the first specified bap_habitat value, OR

  • match the second specified bap_habitat value (regardless of the ihs_habitat value)

Table

Identifies the table to be searched.

Column

Identifies the field in the selected table to be searched.

Operator

Drop-down list of the available operators as shown in the figure Query Builder Window - List of Operators.

Value

The value to search for. Values can either be entered as free-text or selected from the drop-down list (where available).

../_images/SQLOperatorList.png

Query Builder Window - List of Operators

Once users have entered the values for the current row, click on another row in the query builder to confirm the entry and enable the ‘OK’ button.

If a mistake has been made when entering the selection criteria, click on the grey box to the left of ‘Boolean Operator’ to select the row, then press the keyboard Delete key to remove it.

Tip

If features are likely to be selected from multiple INCIDs it will typically be much quicker to select features in the GIS (if the available attributes are sufficient for the selection) then use ‘Get Map Selection’.

5.8.2. Advanced Query Builder Window

Allows users to filter the database records using the advanced query builder shown in the figure Advanced Query Builder Window.

Click filterbyattr or Select… –> Filter by Attributes… to open the window.

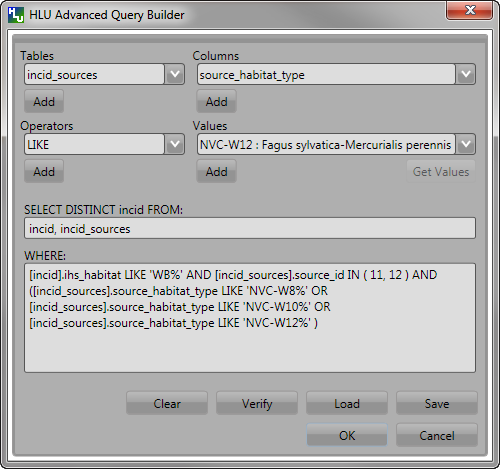

../_images/AdvancedQueryBuilder1.png

Advanced Query Builder Window

Tables

Identifies the table to be queried.

Columns

Identifies the field in the selected table to be searched.

Operators

Drop-down list of the available operators as shown in the figure Advanced Query Builder Window - List of Operators.

Values

The value to search for. Values may automatically be loaded in the drop-down list, if the selected Table and Column refer to one of the lookup tables, or can be manually loaded using the Get Values button.

Add Buttons

The Add buttons will paste the selected item from the relevant Tables, Columns, Operators or Values field into the SELECT DISTINCT incid FROM: text box or the WHERE: text box (as appropriate).

../_images/AdvancedSQLOperatorList.png

Advanced Query Builder Window - List of Operators

SELECT DISTINCT incid FROM:

A text box that should contain a comma-separated list of the tables that are referenced in the WHERE text box.

WHERE:

A text box that should contain the SQL clause which will select the required INCID values from the HLU Tool database.

Clear

Click the Clear button to remove any existing text from the SELECT DISTINCT incid FROM: and WHERE: text boxes.

Verify

Click Verify to determine if the query is valid by checking the syntax of the text boxes and hence will execute successfully on the HLU Tool database. If the syntax is valid it will also determine if any records will be returned by the query.

Load

Click Load to copy an existing query file into the text boxes. Users will be prompted for the source path and file name of an existing .hsq file. The default folder path can be set in the Options (see Filter Options for more details).

Save

Click Save to copy the text boxes to a query file. Users will be prompted for the destination path and file name of the .hsq file to save the query to. The default folder path can be set in the Options (see Filter Options for more details).

OK

Click OK to execute the query and close the query window. If the user has requested to be warned before applying the GIS selection then a pop-up message will appear advising how many expected INCIDs and features will be selected and if a ‘Join’ will be used to select the features in GIS (see Filter Options for more details).

Cancel

Click Cancel to close the ‘Advanced Query Builder’ window without applying a new filter.

Tip

Whilst the Tables and Where Clause can be entered as free-text by the user, it is recommended that users use the drop-down lists and Add buttons to reduce the likelihood of syntax errors.

5.8.3. Filter by Incid Window

Users can also filter the INCID records that appear in the user interface, and correspondingly which features are selected in the active GIS layer, by entering a single INCID.

Click Select… –> Filter by Incid… to open the window.

../_images/FilterByIncid1.png

Filter By Incid Window

Enter Incid to filter by

Enter the full value of the INCID that is sought in this field (e.g. ‘0200:0001234’).

OK

Click OK to execute the query and close the query window. The button will only be enabled when an INCID value has been entered.

Cancel

Click Cancel to close the query window without applying a new filter.

5.9. Export Window

Allows users to combine both the GIS features and their associated attribute data from the HLU database and export the results to a new GIS layer using a pre-defined export format.

Click File… –> Export to open the Export window.

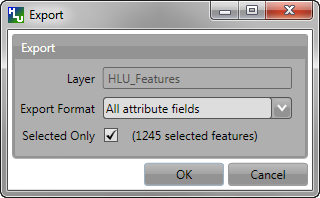

../_images/ExportDialog1.png

Export Window

Layer

Displays the active GIS layer.

Export Format

Allows the user to choose one of the predefined export formats.

See also

For details on defining export formats see ‘Configuring Exports’ in the HLU Tool Technical Guide at readthedocs.org/projects/hlutool-technicalguide.

Selected Only

Allows the user to choose if only the selected features in the active GIS layer will be exported or if all features from the active GIS layer associated with the INCIDs in the active filter will be exported.

Note

If the database records have been filtered the ‘Selected only’ checkbox is automatically ticked and the number of selected GIS features is shown (as seen in Export Window). Only the records related to the selected INCIDs and associated GIS features from the active GIS layer will be exported. Untick this checkbox to export all features from the active GIS layer associated with the INCIDs in the active filter. For details on how to filter records see Filter by Attributes.

5.10. Switch GIS Layer Window

Click switch or Tools… –> Switch GIS Layer to open the window.

Allows users to switch between GIS layers by selecting a different layer in the drop-down list (see the figure Switch GIS Layer Window). If there are multiple windows/frames in the associated GIS application the name of each layer may be followed by a window/frame name and number (e.g. ‘HLU Non-urban Features in Layers [1]’) indicating which window/frame that layer is associated with.

Note

Only layers from the current workspace/document that are valid HLU layers (i.e. have the correct attribute names and formats) will appear in the drop-down list.

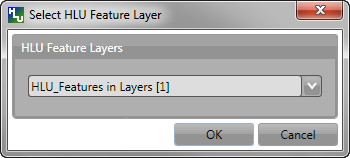

../_images/SwitchGISLayerDialog.png

Switch GIS Layer Window

Tip

The currently active GIS layer is automatically selected in the drop-down list when the Switch GIS Layer window opens. The active GIS layer also appears in the main window title bar.
